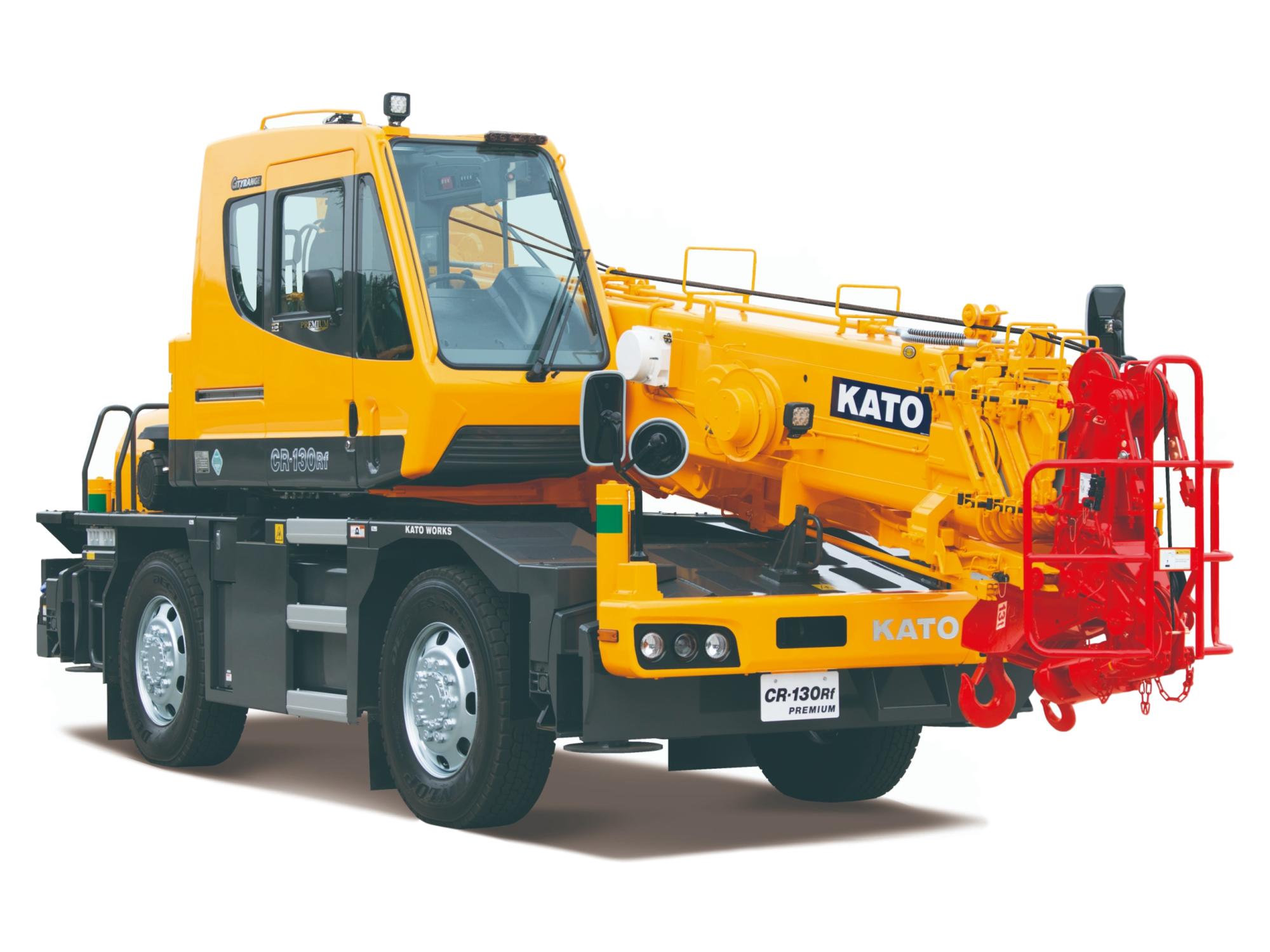

Kato
CR-130Rf

Excellent Visibility and Functional Support.

Searcher Hook
Two position offset angle Searcher Hook is available giving optimum work range, with a 3 tonne max capacity.
High Rigidity Superboom and Hydraulic Jib
A 6-section round shaped full power boom with 24 m boom length, 24.8 m lifting height and 13 t x 1.7 m maximum lifting capacity. A further 5.5 m 2-section hydraulic luffing power jib extends maximum lifting height to 30.3 m with a 5 degree - 60 degree offset angle.
Improved Safety Features
Clearance sonar system to detect obstruction and alert operator, increase in roof glass size and IC built-in engine start tag.
CR-130Rf
  • 13 t x 1.7 m
    Max Lift Capacity
  • 30.3 m
    Max lifting height with fly jib
  • 3.92 m
    Min Turning Radius
  • 164 - 475 cm
    Outrigger Width
Scroll to explore

A fast and compact city crane with progressive features for manoeuvrability and ease of use in city operations with 4 wheel steer.
